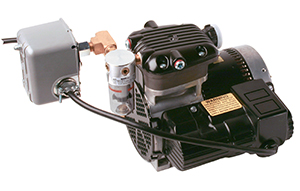

Auto Pump AC, Model #: 091-9B-1

auto pump ac
  • 100 PSI Max Rating, 120V, 4A
  • Vehicle mount compressor ensures air brake system is properly pressurized for immediate
    truck departure from station
  • Pressure switch regulated operation automatically senses low pressure in air system and restores proper pressure, preventing brake lock-up
  • Pressure switch regulated operation
  • No interference with engine mounted air compressor
  • Factory set PSI actuation points: 75 "On", 95 "Off" with Adjustment differential 20 PSI
  • Sealed ball bearings for long service life
  • Compact size
  • 1 year warranty

  • Auto Pump AC
    Specifications
  • Downloadable
    Files
  • Outline
    Drawing
  • Related
    Products
Input: 120 volts A.C., 50/60 Hz, 1.8 amps
Output: 1.0/1.3 CFM, Open Flow, 100 PSI Max
Motor Type: Shaded Pole AC
Motor Horsepower: 1/8 HP
Pressure Switch: Adjustable Set Point-Factory set to 75 PSI Cut-in, 95 PSI Cut-out
                                 Factory set to 75 PSI Cut-In, 95 PSI Cut-Out
Outlet Connection: 1/4 NPT, Female
Weight: 15 lbs
Warranty: 1 Year




Instruction Manual, 120 Vac.pdf (421 Kb)
Instruction Manual, 240 Vac.pdf (712 Kb)









outline drawing 091-9b-1
Auto Pump 12 Volt - 091-9-12V
Auto Pump 12 Volt with Auto Drain - 091-9-12V-AD
Auto Pump Timer - 091-150
Auto Pump 12 Volt HP, Horizontal Mount - 091-9-12V-HP-HOR
Auto Pump 12 Volt HP, Vertical Mount - 091-9-12V-HP-VER
Mounting Plate for Auto Pump 12 Volt and 12 Volt HP - 091-9-12V-HP-H
Auto Pump AC with Auto Drain - 091-9B-1-AD
Mounting Plate for Auto Pump AC - 091-9H-1
AC Auto Pump Timer - 091-150-115
Auto Pump HP - 091-9HP
Auto Pump HP with Auto Drain - 091-9HP-AD
Mounting Plate for Auto Pump HP - 091-9HP-H
Auto Pump Tester - 091-205

The Auto Pump AC is a 120 volt 60 Hz shaded pole A.C. motor operating a single cylinder air compressor designed specifically for installation on vehicles with air brakes.  During long idle periods of the vehicle, when even the slightest seepage can cause an air brake system pressure to drop below the brake lockup pressure, the Auto Pump AC automatically starts to maintain the pressure.
The Auto Pump AC motor is directly coupled to the compressor section eliminating all belts and pulleys and assuring long life and reliable operation. A heavy duty pressure switch is adjusted to start the compressor when the system pressure drops below 75 PSI and stops the compressor when 95 PSI is attained. The start up pressure is field adjustable - the pressure differential between start up and stopping is fixed. The moisture trap provided permits routine draining of accumulated moisture in the Auto Pump output line.
