Auto Charge 80 LPC, Model #: 091-206-12

lpc 80
  • 80A, 12V charge rating
  • Light weight, small low profile size
  • Clean output poses no interference with radios and other mobile electronics
  • Auxiliary 15A output circuit with power source
    selector switch for operating accessory loads: air compressor pumps, hand lights or handheld radios
  • Front panel connections for remote display and auxiliary loads
  • Designed for rigors of emergency vehicle use; heavy duty aluminum case
  • Remote battery sensing output to compensate for longer charging cables
  • 3 year warranty

  • Auto Charge 80 LPC
    Specifications
  • Downloadable
    Files
  • Indicator
    Options
  • Outline
    Drawing
  • Related
    Products
Input: 120 Vac, 50/60 Hz., 13 Amps Max
Input Fuse: 15 Amp Resettable Circuit Breakers
Output: 12 Vdc, 80 Amps
Output Fuse (Included): 100 Amps (Part Number: 090-0100-0)
Charge Indicator Options: Remote Bar Graph Display, Deluxe Status Center, or Watertight Status Center
Weight: 10 lbs
Warranty: 3 Years






Datasheet.pdf (906 Kb)
Instruction Manual.pdf (1,870 Kb)















outline drawing 091-206-12
Auto Charge Status Center - 091-189-12
Auto Charge Precision Status Center - 091-189-12-3.5D
Auto Charge Deluxe Status Center - 091-194C-IND
Watertight Auto Charge Deluxe Status Center - 091-194C-IND-WT
120 Volt Auto Pump - 091-9B-1
120 Volt Auto Pump with Auto Drain - 091-9B-1-AD
WP Auto Eject, 20 Amp - 091-20WP-120
Super Auto Eject, 20 Amp - 091-55-20-120






The Auto Charge 80 LPC is a fully automatic battery charger designed in a compact rugged package that saves valuable compartment or under seat space in fire apparatus and other emergency vehicles. The LPC series smart chargers, provide rapid replenishment of batteries, with a clean, no electronic interference output. May be used for positive and negative ground systems. Front panel connections allow easy wiring of AC Power, Batteries, Remote Indicator, and Auxiliary Loads, such as hand lights, radios, and Auto Pumps.

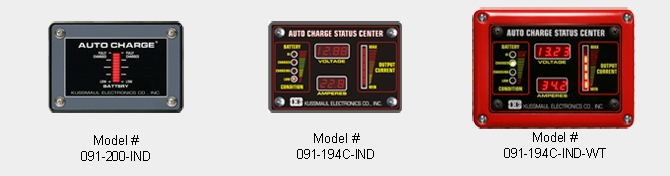

This charger has three remote indicator options. Option 1, is the standard, 10 Element, Single Bar Graph Display. This indicator will come with the charger unless otherwise specified. Order 091-206-12-IND for this option. Option 2, is the Auto Charge Deluxe Status Indicator. This indicator has a digital voltage and ampere display, a 5 segment bar graph display to indicate the output current, and 4 LED's to show the condition of the batteries. Order 091-206-12-194C for this option. Or Option 3, is the Watertight Auto Charge Deluxe Status Center. This is the same indicator as Option 2, only the indicator is housed in a watertight bezel. The bezel is available in 6 different colors, Red, White, Blue, Yellow, Gray, and Black. Specify color choice when ordering. Order 091-206-12-194C-WT-XX for this option.
